OPTIMARC®
Best choice for pulse welding of stainlesss and carbon steel

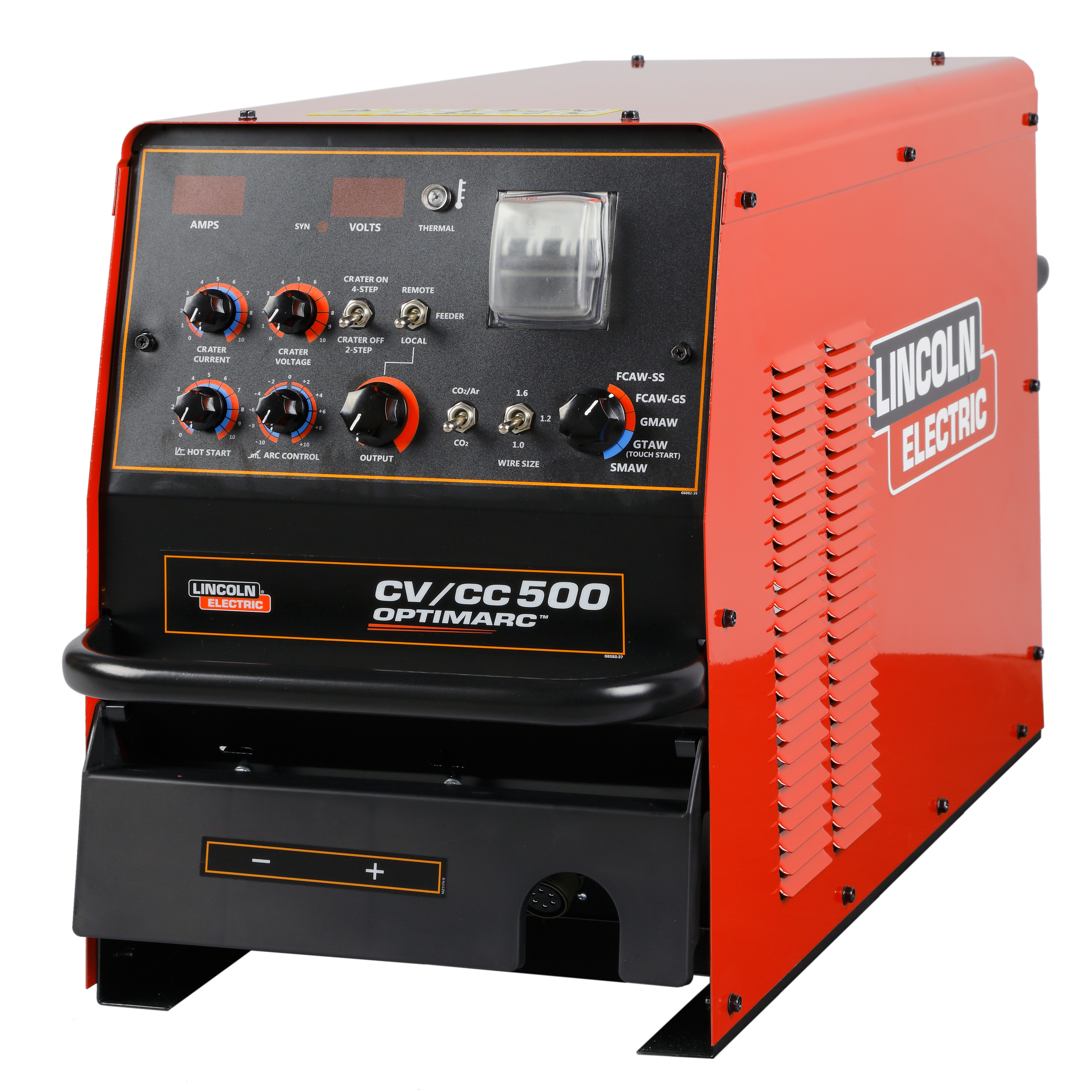

OPTIMARC® CV/CC 500
The digitally controlled OPTIMARC® CV/CC 500 provides constantly voltage (CV)/ constant current (CC) output for heavy duty welding applications delivering superior welding performance and faster response to changes at the arc. It is ideally suited for fabricating with MIG and Flux Cored arc welding processes with 1.0mm to 1.6mm diameter solid and flux core welding wires. It is also ideal for use on SMAW with up to 6mm electrodes.
Take advantage of this inverter-based power source to achieve high input power efficiency and power factor ratings for real savings on your electric bills and decrease your welding cost
Heavy fabrication welding operations will appreciate the broad multi-process performance of the CV/CC 500 -- featuring robust stick, MIG and cored wire welding as well as precision Touch-Start TIG performance.
FEATURES
Synergic function, preset voltage is matched with current automatically. Both current and voltage are pre-settable
Light weight and portable - easy to move
Toughness. Test to strict IP 23 Classifications-designed for "Real" industrial conditions
Made to Last PC Boards
A five position switch for welding process mode selection enabling the operator to easily select his chosen welding output for his specific welding application
Full remote and multi-process capability-Stick, Touch-Start TIG, MIG, Flux-cored
Lincoln Electric's latest generation of worldwide inverter technology for maximum reliability
Unique low power consumption design with 85% efficiency with a high 0.94 power factor
Touch-Start TIG for easy to achieve great arc starts minimizing tungsten contamination
Digital meters
5-500 Amp output range for all recommended processes which is low enough for TIG welding on thin sheet metal and robust enough for stick welding with 6 mm electrode
Sturdy Easy Access Front Panel door protects multi-pin control socket and weld terminals

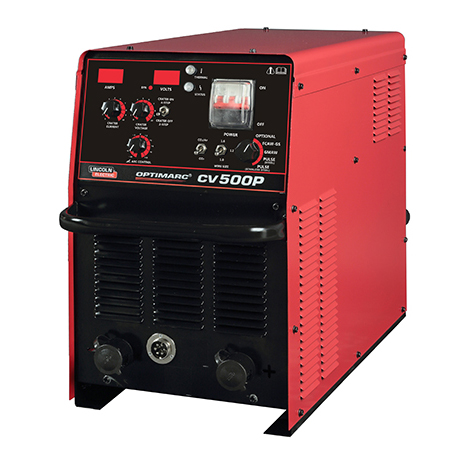

OPTIMARC® CV 500P
The digitally controlled OPTIMARC™ CV 500P provides constant voltage [CV) output for heavy duty welding applications and delivers superior welding performance and faster response to changes at the arc. It is an ideally suited for MIG/MAG and Flux Cored arc welding processes. Pulse welding of carbon and stainless steel could attain high-quality welding performance.
OPTIMARC'" CV 500P could achieve high input power factor ratings for real savings on your electric bills and decrease your welding costs. The welding system including LWF'" wire feeder could provide outputcontrol with optimum spot to meet the need of arc performance and welding quality from customers.
OPTIMARC™ CV 500P is ideal power source for industrial manufacturing such as steel structure, engineering machinery, ship manufacturing, petrochemical.
FEATURES
Synergic function, preset current is matched with voltage automatically.
Unique low power consumption design with 85% efficiency with a high 0.94 power factor
Adjustable arc control, welder can choose soft arc or hard arc based on each mode
Fast arc response, even output control, uniform appearance, superior arc performance and weld penetration control
Digital meters
Both voltage and current are pre-settable
Precise control, comparing with conventional SCR power source, precise control over arc stability could help realize less spatters and better bead
Made to Last PC Boards
