Steel Beam Assemblers (SBA)
Zeman Machines is globally recognised as turn-key specialists, able to create a steel facility from the ground up. Zeman offers everything needed to turn “green field” into a functioning structural steel and/or cladding facility including design, commissioning, all the needed logistical and assembly machinery, full employee hiring and training and more. Zeman designs and build the highest standard of automation and efficiency focused on achieving profitability in the fastest possible timeframe.

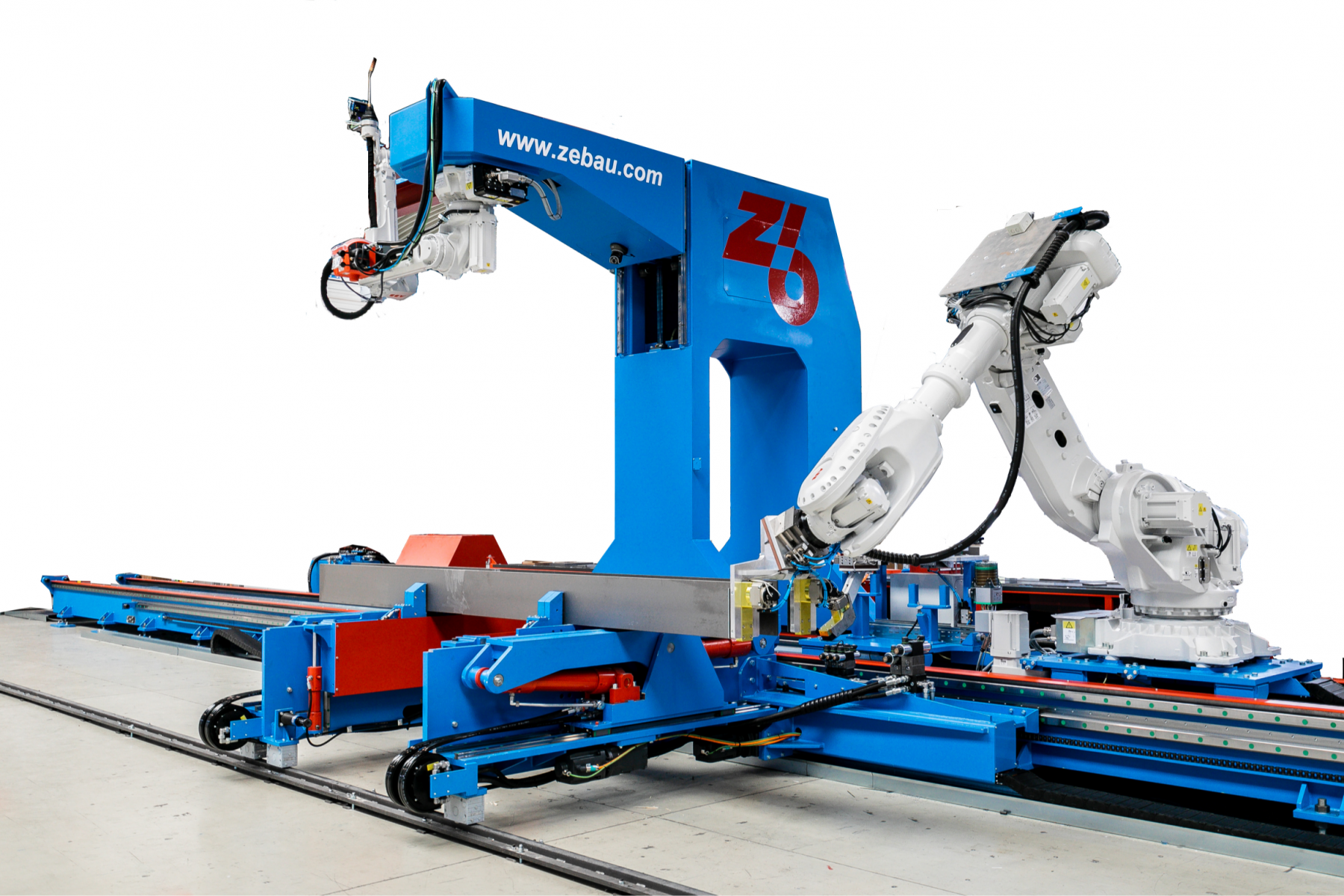

SBA SR COMPACT
The SBA Single Rail Compact is a fantastic entry-level tacking and welding machine. Economical and Efficient, it’s ready to help small and medium size shops increase their output and grow.
FEATURES
Single Rail Design. Both, the welding and the assembly robot move on the same track. Allows minimum machine footprint and open access to feed material by fork truck.
Torch Mounted Laser Measurement. Defines material dimensions and locate the zero reference point.
Tack & Multi-Pass Weld Robot for fully automated and perfect beam assembly.
Parts Scanning Unit. For full quality check of all ADD parts. Each scan simultaneously checks and compares the results with the 3D model.
Parts Robot. ADD parts will be perfectly positioned to their exact weld location.
Integrated Profile Turning Device. Rotate beams the full 360° for maximum processing and continuous automated production.
Profile Clamping Unit. Secures the main profile for tacking and welding.
Machine Control. Fully automated production with all its data in sight and control from a safe position and distance.
ProFIT Software. Allows semi automated generation of the full assembly and welding workflow.

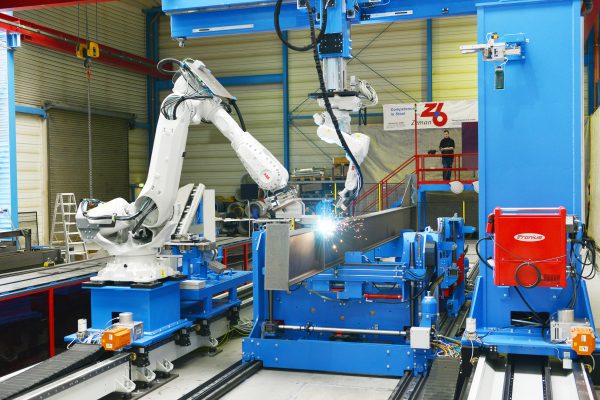

SBA COMPACT
Optimized for assembly, the SBA Compact consists of 1 robot for assembly, tack and finish welding. In-out feed of beams requires a crane, and the machine fits within a length of just 26 meters.
FEATURES
Modular Design. Allows to add Options to the machine at a later stage to make it even more productive.
Laser Measurement. Defines material dimensions and locate the zero reference point.
Tack & Weld Robot for fully automated and perfect beam assembly.
Parts Scanning Unit. For full quality check of all ADD parts. Each scan simultaneously checks and compares the results with the 3D model.
Parts Robot. ADD parts will be perfectly positioned to their exact weld location.
Integrated Profile Turning Device. Rotate beams the full 360° for maximum processing and continuous automated production.
Profile Clamping Unit. Secures the main profile for tacking and welding.
Machine Control. Fully automated production with all its data in sight and control from a safe position and distance.
ProFIT Software. Allows semi automated generation of the full assembly and welding workflow.

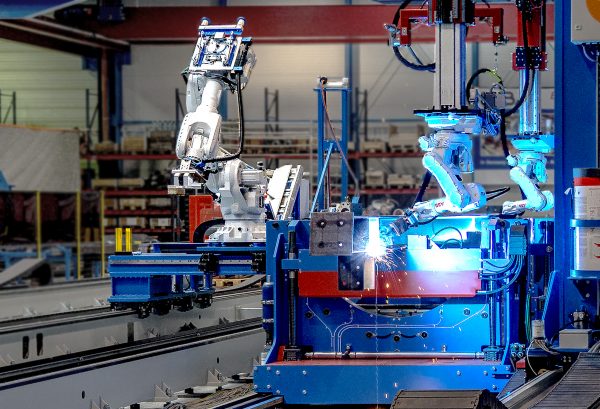

SBA CONTI
With just one worker on the floor, this machine can process 13 beams in an 8 hour shift. Each SBA Conti line is customized to your specific needs. In-feed systems with automatic beam straightening, built to fit your workflow.
FEATURES
Highest Automated Line. Always comes with automatic InFeed & UnLoading for Main Profile and a moveable ADD Parts table.
Laser Measurement. Defines material dimensions and locate the zero reference point.
Tack & Weld Robot for fully automated and perfect beam assembly with up to 4 Welding Robots at our Double Line.
Parts Scanning Unit. For full quality check of all ADD parts. Each scan simultaneously checks and compares the results with the 3D model.
Parts Robot. ADD parts will be perfectly positioned to their exact weld location.
Integrated Profile Turning Device. Rotate beams the full 360° for maximum processing and continuous automated production.
Profile Clamping Unit. Secures the main profile for tacking and welding.
Machine Control. Fully automated production with all its data in sight and control from a safe position and distance.
ProFIT Software. Allows semi automated generation of the full assembly and welding workflow.

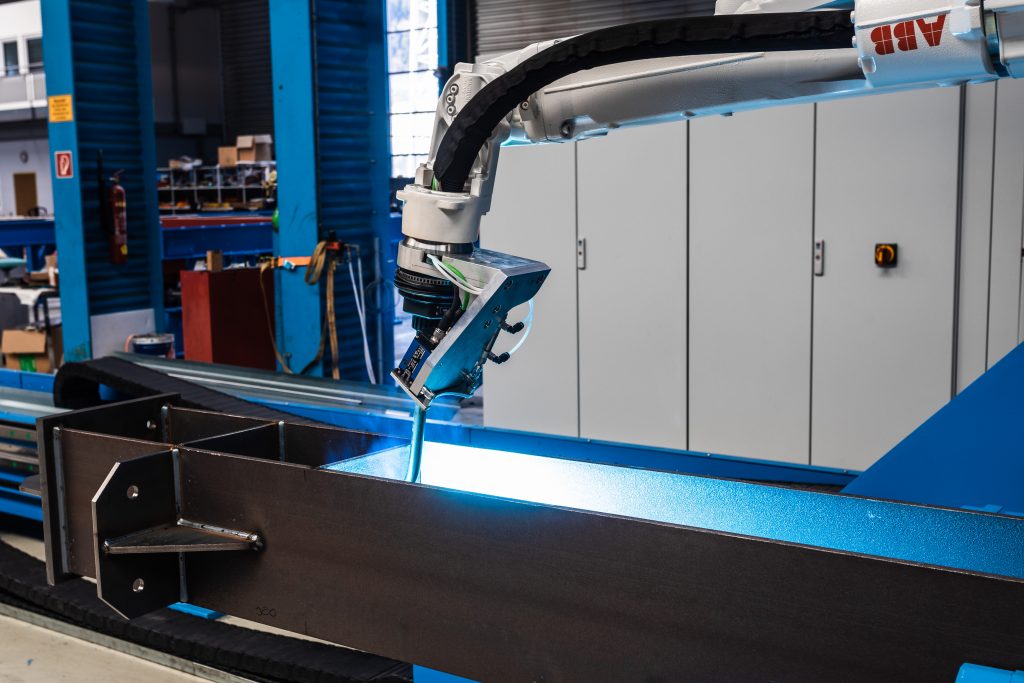

SBW TERMINATOR
The Terminator never gets sick and is always pumping iron. Offering integrated profile turning, it’s designed for welding out structural profiles up to 760mm wide. This machine can become a part of your existing workflow with ease. Also available in a duplex configuration and can be put in series with a SBA SR Compact 760 to increase the troughput even further. Both machines work with the same auto generated production file.
FEATURES
Welding Cell based on the SBA Compact design. Also available in a Duplex configuration with 2 workstations and 2 welding robots.
Laser Measurement. Defines material dimensions and locate the zero reference point.
Weld Robot for fully automated perfect welds.
Integrated Profile Turning Device. Rotate beams the full 360° for maximum processing and continuous automated production.
Profile Clamping Unit. Secures the main profile for welding.
Machine Control. Fully automated production with all its data in sight and control from a safe position and distance.
ProFIT Software. Allows semi automated generation of the full welding workflow.

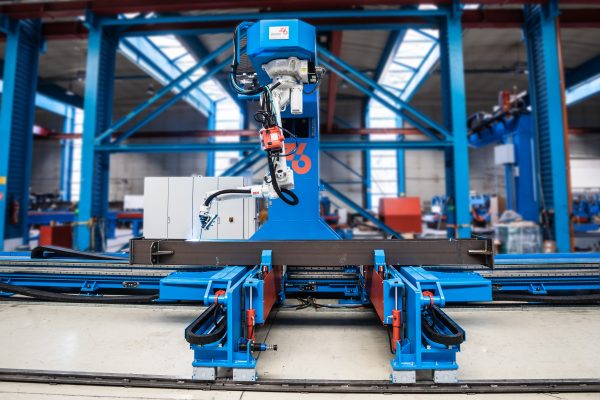

SBW ECO
The SBW Eco is a welding robot with integrated profile turning devices. It has been designed for welding out structural profiles up to a max. width of 1100 mm and can handle higher volume than the SBW Terminator. The capacity of SBW Eco can be increased by applying one additional welding robot ( SBW Eco+ ) and is also available in a Duplex version.
FEATURES
Welding Cell based on the SBA Compact design. Also available in a Duplex configuration with 2 workstations and 2 welding robots.
Laser Measurement. Defines material dimensions and locate the zero reference point.
Weld Robot for fully automated perfect welds.
Integrated Profile Turning Device. Rotate beams the full 360° for maximum processing and continuous automated production.
Profile Clamping Unit. Secures the main profile for welding.
Machine Control. Fully automated production with all its data in sight and control from a safe position and distance.
